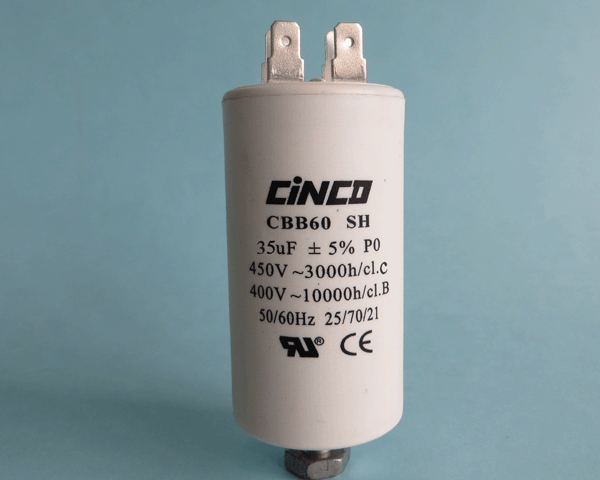

35UF 400V 450VAC CBB60A Motor Run Capacitors

35UF 400V 450VAC CBB60A Motor Run Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

Specification:

Product Details:
Model No	CBB60A
Product Name	Motor Run Capacitor
Rated Capacitance	35uF
Tolerance	±5%
Rated Voltage	400/450VAC
Brand	Cinco or Custom-made
Housing Material	Plastic
Housing Shape	Round
Terminal	2+2 6.35mmx0.8 pins
Dielectric Material	Metallized Polypropylene Film
Operating Temperature	25/70/21
Frequency	50/60Hz
explosion-proof Class	P0
Business Term:
Price Scope:	$0.7 – $0.9
Price term:	FOB,CNF,CIF
Load Seaport	Ningbo,Shanghai,Guangzhou
Minimum Order Quantity	2000pcs
Supply Ability:	200,000pcs per month
Payment Terms	TT,LC
Packaging & Delivery
Body Dimension	45 x 92mm/1.77″ x 3.62″(D * H)
Packing	100pcs/carton
individual color box	available
Customer-print	available
Delivery time	15-30 working days

if you could not find your item of above, you could contact me by email at sales@china-capacitores.com, Special specification are available on request.
