Lighting Capacitor

Lighting Capacitor



lighting capacitor designed for both series and parallel compensation of fluorescent lighting ballasts, mercury, metal halide, and sodium pressure lamps. Lighting capacitors are available in either thermoplastic or aluminum cases with a selection of terminal configurations and mounting options.


Features:

The use of high-quality Germany Treofan high temperature polypropylene film made no sense of winding, high temperature plastic housing or the use of light aluminum shell oxidation processing, the internal structure of device discharge resistors and fuses.The capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity,etc. Used in high and low pressure sodium lamp, mercury lamp, metal halide lamp, since the role of power factor compensation.

1) Elevation: the safe operation of the region in the altitude of not more than 3000m.
2) Applied voltage when the voltage remaining: to be filled more than 10% of rated voltage.
3) Dirty: to install to run the region free of conductive dust, no corrosive gas, no inflammable media.
4) Operation Temperature: Operation temperature range of capacitor -40 ℃ – 105 ℃.


Specification:

Rated capacitance 2µF ~ 60µF
Tolerance ± 5%
Rated voltage 250VAC -450VAC
Rated frequency 50/60Hz
Test voltage terminal to terminal 2 x VR, 60s
Test voltage terminal to terminal 2 x KV, 60s
Dissipation factor tan δ ≤ 5 x 10-4 (V=Vn T= +20℃)
Climate types -40℃ ~ +105℃
Reference standards EN61048, EN61049, UL810
Safety class according IEC 60252-1 IP00
Life expectancy to IEC 60252-1 3,000(C) ~ 10,000h(B)

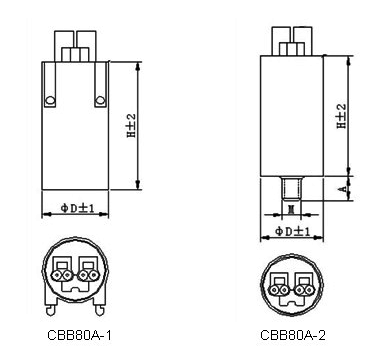

Ⅰ: Light capacitor power factor compensation quick connect
Light capacitor power factor compensation quick connect

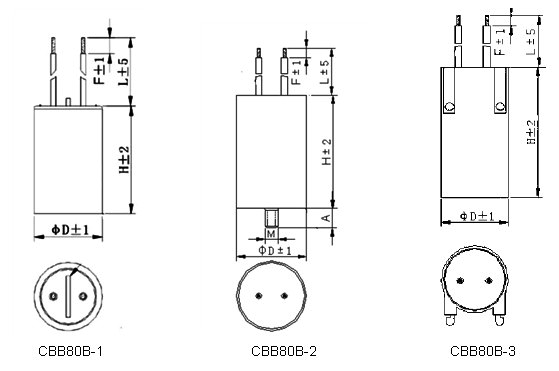

Ⅱ: Light capacitor power factor compensation wire leading
Light capacitor power factor compensation wire leading


Dimensions:

Capacitance
Rated Voltage
Capacitor Can
Dimensions
D(mm)
D(inch)
H(mm)
H(inch)
3μF
250Vac
Plastic or Aluminum
35
1.38″
60
2.36″
4μF
250Vac
Plastic or Aluminum
35
1.38″
60
2.36″
4.5μF
250Vac
Plastic or Aluminum
35
1.38″
60
2.36″
6μF
250Vac
Plastic or Aluminum
35
1.38″
60
2.36″
8μF
250Vac
Plastic or Aluminum
35
1.38″
60
2.36″
9μF
250Vac
Plastic or Aluminum
35
1.38″
70
2.76″
10μF
250Vac
Plastic or Aluminum
35
1.38″
70
2.76″
12μF
250Vac
Plastic or Aluminum
40
1.57″
70
2.76″
15μF
250Vac
Plastic or Aluminum
40
1.57″
70
2.76″
18μF
250Vac
Plastic or Aluminum
40
1.57″
90
3.54″
20μF
250Vac
Plastic or Aluminum
40
1.57″
90
3.54″
24μF
250Vac
Plastic or Aluminum
40
1.57″
90
3.54″
30μF
250Vac
Plastic or Aluminum
40
1.57″
90
3.54″
32μF
250Vac
Plastic or Aluminum
45
1.77″
92
3.62″
35μF
250Vac
Plastic or Aluminum
45
1.77″
92
3.62″
40μF
250Vac
Plastic or Aluminum
45
1.77″
92
3.62″
55μF
250Vac
Plastic or Aluminum
50
1.97″
90
3.54″

question if you could not find your item of above, you could contact me by email at sales@china-capacitores.com, Special specification are available on request.
